Thunderbolt™

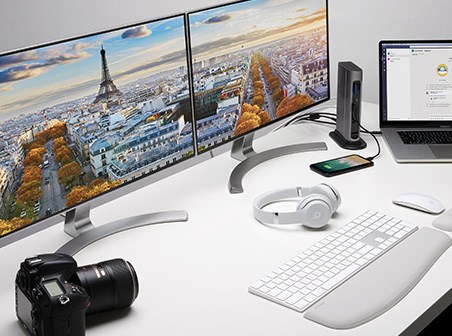

A Thunderbolt™ docking station is a device that connects to a computer via a Thunderbolt™ cable and provides multiple ports for connecting peripheral devices, such as external hard drives, displays, keyboard, mouse, and others. It allows the user to connect multiple devices to a single port, reducing cable clutter and making it easier to connect and disconnect all the devices with just one cable. Thunderbolt™ docking stations typically offer high-speed data transfer and support for dual 4K displays and can also provide charging for laptops and other devices.

Thunderbolt™ is a high-speed interface technology designed for connecting peripheral devices to a computer. It provides the fastest data transfer speeds, supports multiple high-resolution displays, and allows multiple devices to be connected through daisy-chaining. Thunderbolt technology is versatile, enabling both data and video transfer, and it uses a compact, reversible USB-C type connector.

No. Thunderbolt™ is a protocol from Intel whereas USB-C is a connector type maintained by the USB-IF. While Thunderbolt™ leverages the physical USB-C connector, Intel’s Thunderbolt™ technology maintains minimum requirements with OEMs using their technology (to ensure a consistent experience between devices and brands). USB-C can be implemented in many ways (data only, data and power, data and video, or data, video and power). As of late 2023, Thunderbolt™ (3 or 4) can support Dual 4K video @ 60Hz, up to 100W Power Delivery, 40Gbps data transfer speeds, daisy chaining and more. While USB-C 3.2 Gen 2 can support data, video and power; output varies by device. As of 2025, Intel introduced Thunderbolt™ 5 which can now support up to triple 4K video @ 144Hz, up to 140W Power Delivery supported through PD3.1, 80Gbps of bidirectional bandwidth and up to 120Gbps of transmit bandwidth for video intensive usage, daisy chaining and more.

Yes, you can connect USB devices to a Thunderbolt™ port. Thunderbolt™ technology supports the USB protocol, and most Thunderbolt™ ports include a USB controller, allowing you to connect USB devices directly to the port. This means that you can connect USB devices, such as external hard drives, printers, and others, to a Thunderbolt™ port and use them as if they were connected to a USB port on your computer. Additionally, some Thunderbolt™ docking stations have additional USB ports that you can use to connect additional USB devices.

This depends on your requirements. One of the benefits of Thunderbolt™ though is that you can daisy chain multiple devices off a single port. As an example, instead of needing five ports on a docking station, you could connect one Thunderbolt™ SSD to the docking station and then daisy chain the other SSDs off the first one: pending your SSDs support daisy chaining. In addition to this, while Thunderbolt™ 3 docking stations supported one upstream port (host laptop port) and one downstream port (port to connect a monitor, SSD, eGPU, etc.), Thunderbolt™ 4 and Thunderbolt™ 5 now offers one upstream port and three downstream ports natively providing you even more Thunderbolt™ ports to leverage.

Thunderbolt’s seamless integration spans major operating systems, encompassing Windows, macOS, and ChromeOS. In Windows, users benefit from native Thunderbolt support, while macOS seamlessly integrates Thunderbolt into its system. ChromeOS, the operating system for Chromebooks, is also in step with Thunderbolt technology. This widespread compatibility emphasizes Thunderbolt’s commitment to providing a smooth and universally accessible connectivity experience across various operating systems, making it an integral component of diverse computing environments.

Thunderbolt’s versatility extends across an extensive range of devices, encompassing laptops, desktops, external storage solutions, monitors, and various peripherals. The key to Thunderbolt’s adaptability lies in its seamless integration into diverse computing environments, offering a universal solution irrespective of the device’s type or size. The ground-breaking feature is Thunderbolt’s bidirectional data transfer speeds, now reaching an unprecedented 80 Gbps, positioning it as a transformative force for data-intensive tasks such as video editing and 3D rendering. Whether swiftly connecting external storage for backups, enhancing desktop capabilities with high-speed peripherals, or powering high-resolution displays with minimal latency, Thunderbolt’s compatibility with a wide array of devices, coupled with its exceptional speeds, propels it into a new era of seamless and accelerated workflows for professionals and enthusiasts alike.

Thunderbolt’s innovative daisy-chaining capability revolutionizes connectivity by enabling users to link multiple Thunderbolt-enabled devices through a single port. This streamlined approach simplifies cable management and optimizes workspace organization, allowing users to connect devices like docking stations, external monitors, and storage seamlessly. This feature is especially beneficial in environments with limited port availability, offering a cascading solution that expands connectivity options without cluttering the workspace. Thunderbolt’s commitment to efficiency and simplicity, coupled with its high data transfer speeds, makes it a standout solution for users seeking an organized and productive work environment, whether in a professional studio, creative space, or at home.

• Use Certified Cables and Devices: To ensure compatibility and optimal performance, users should use Thunderbolt-certified cables and devices. This guarantees adherence to industry standards and minimizes the risk of connectivity issues.
• Update Firmware and Drivers: Regularly check for firmware and driver updates for Thunderbolt devices. Manufacturers often release updates to enhance performance, address compatibility issues, and improve overall stability.
• Daisy-Chaining Considerations: When daisy-chaining multiple Thunderbolt devices, follow the recommended order specified by the manufacturer. This helps maintain optimal data transfer speeds and power delivery throughout the chain.
• Power Delivery Management: Understand the power requirements of connected devices. Adjust power delivery settings based on the specific needs of each device to ensure efficient and safe operation.
• Avoid Daisy-Chaining High-Bandwidth Devices: For maximum performance, avoid daisy-chaining multiple high-bandwidth devices (e.g., external GPUs or high-resolution displays). Connect these devices directly to Thunderbolt ports whenever possible.
• Monitor Cable Length: Longer Thunderbolt cables can impact signal integrity and data transfer rates. Use the appropriate cable length for the specific Thunderbolt version being utilized to maintain optimal performance.

• Check Cable Integrity: A common cause of Thunderbolt issues is damaged or faulty cables. Inspect cables regularly for physical damage, and if possible, try alternative cables to rule out cable-related problems.
• Verify Device Compatibility: Ensure that all Thunderbolt devices connected to the system are compatible with the Thunderbolt version supported by the computer. Incompatible devices can lead to connectivity issues and performance degradation.
• Update Drivers and Firmware: If experiencing issues, check for the latest drivers and firmware updates for both the Thunderbolt controller and connected devices. Keeping all components up to date can resolve compatibility issues and improve stability.
• Restart and Reconnect: Sometimes, simply restarting the computer or reconnecting Thunderbolt devices can resolve intermittent connection problems. Ensure that all devices are properly powered on and connected before restarting.
• Check Power Supply: Inadequate power supply can cause malfunctions. Ensure that Thunderbolt devices receive sufficient power, especially when connecting high-power peripherals. Use an external power supply when necessary.
• Review System Logs: Check system logs for error messages related to Thunderbolt connectivity. These logs can provide valuable information about the root cause of issues and aid in troubleshooting.

It is not recommended to use Thunderbolt™ 5 peripherals with a Thunderbolt™ 3 laptop. While some basic functions might work, many advanced features of Thunderbolt™ 5 may not be supported, leading to potential performance issues or malfunctioning devices. Furthermore, Intel has stated that they will not provide support updates for Thunderbolt™ 3 devices to resolve any compatibility issues with Thunderbolt™ 5. To fully utilize the benefits of Thunderbolt™ 5 and ensure compatibility, it is advisable to upgrade to a laptop that supports Thunderbolt™ 5.
