Enhanced productivity today and in the future for your Surface.

Designed exclusively for Surface, the SD5765T Thunderbolt™ 4 Dual 4K Docking Station provides a plug-and-play connection with everything you need to enhance your productivity today and well into the future.

How can we help?

Have a question about your SD5765T? Need guidance with setup? Want to chat with a Kensington docking solution specialist? Just scroll and select the resource you need.

Connect with a Kensington product specialist.

Woman using headphones

Phone:
800-535-4242

Woman sending email

Technical Support:
Support page

Man using tablet

Live chat:
Click the Live Chat tab on the right

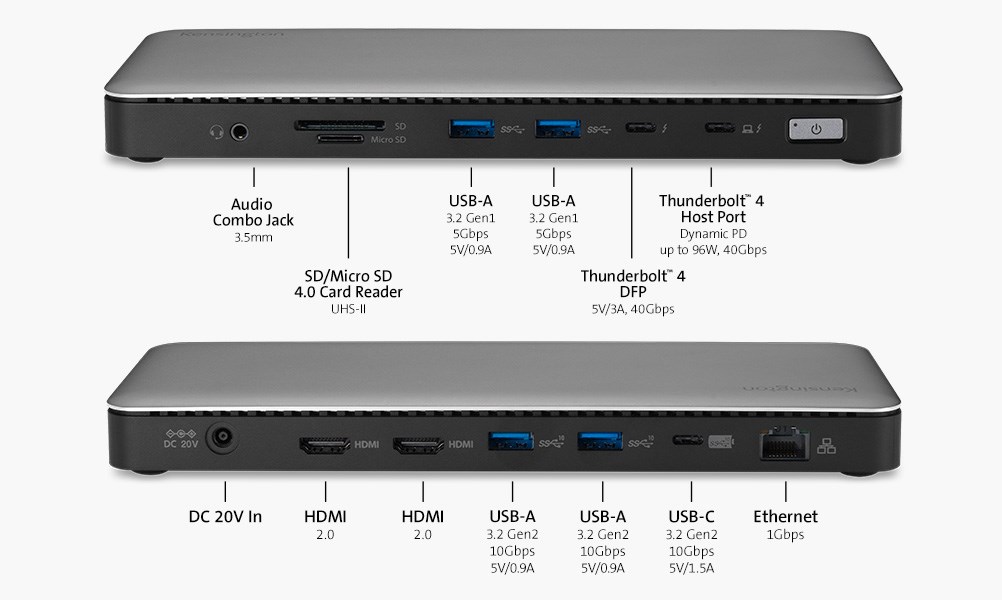

SD5765T, inside and out.

Need guidance with setup?

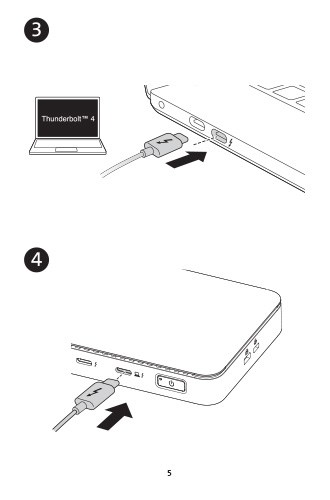

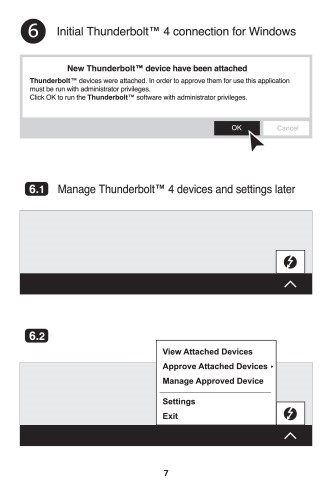

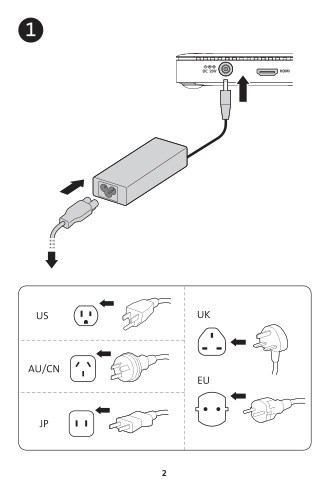

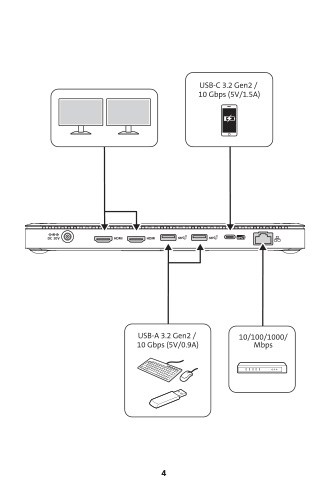

Kensington takes pride in making our comprehensive installation guides easy to follow with simple illustrations and step-by-step instructions. This guide will walk you through setup and help you get to know your new Docking Station.

Download Installation Guide

FAQs

1. Q: What laptops or devices does this docking station support?
2. Q: Which Surface devices are ideal for this dock?
3. Q: What operating systems does this dock support?
4. Q: Does this dock support USB Power Delivery (PD)?
5. Q: How many monitors does the dock support and what are the max resolution supported?
6. Q: My computer supports dual-monitor extended mode, but there is no display on the 2nd monitor.
7. Q: Does the dock support fast-charging for my phone?
8. Q: Can I use other USB-C® or Thunderbolt™ 3 cables (not from the original box) on this dock?
9. Q: Is there a way to mount the dock behind my monitor?
10. Q: Will this dock work with Kensington’s DockWorks software?
11. Q: What Ethernet speed does this dock support?

1. Q: What laptops or devices does this docking station support?

A: This docking station is designed exclusively for surface and supports Thunderbolt™ 4 / Thunderbolt™ 3 / USB4 laptops or 2-in-1’s

2. Q: Which Surface devices are ideal for this dock?

A: Surface Pro 9-Intel® / Surface Pro 8 / Surface Laptop 5 / Surface Laptop Studio

3. Q: What operating systems does this dock support?

A: Windows 10 or above

4. Q: Does this dock support USB Power Delivery (PD)?

A: Supports USB-C® PD 3.0 (Dynamic PD up to 96W of laptop charging)

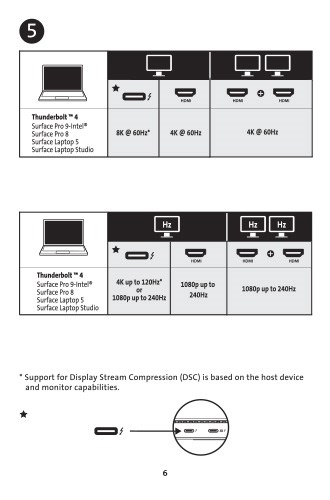

5. Q: How many monitors does the dock support and what are the max resolution supported?

A: Two monitors: Supports up to Single 8K @ 60Hz* /Single 4K @120Hz* via a Thunderbolt™ 4 port or Dual 4K @ 60Hz / Dual 1080p @240Hz* via two HDMI®️ ports. *When host with DSC 1.2 HBR3 is enabled. (Only supports single display on USB-C Alt Mode devices) See the resolution table on product sheet for more details.

6. Q: My computer supports dual-monitor extended mode, but there is no display on the 2nd monitor.

A: Note that USB-C® laptop supports single display vs Thunderbolt™/USB4 laptop supports dual displays. Sometimes the 2nd monitor will not automatically be displayed. You may have to use the Intel, Nvidia, or other compatible graphics card settings application to ‘unhide’ the second monitor.

7. Q: Does the dock support fast-charging for my phone?

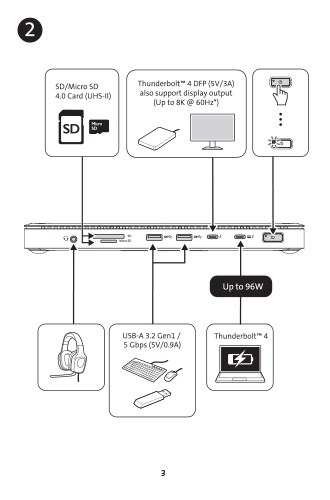

A: Yes, the front Thunderbolt™ 4 DFP 40Gbps 5V/3A port and the back USB-C 3.2 Gen2 10Gbps 5V/1.5A port can charge your phone.

8. Q: Can I use other USB-C® or Thunderbolt™ 3 cables (not from the original box) on this dock?

A: No, we can only guarantee the Kensington cables shipping with the dock would work. USB cables can vary greatly between different manufacturers. We recommend users to contact Kensington for replacement if needed.

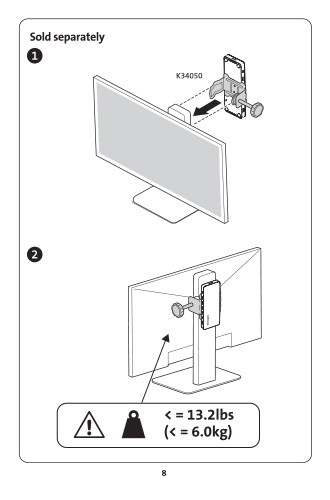

9. Q: Is there a way to mount the dock behind my monitor?

A: Yes, mounting bracket sold separately (K34050WW).

10. Q: Will this dock work with Kensington’s DockWorks software?

A: Yes.

11. Q: What Ethernet speed does this dock support?

A: This dock supports the Gigabit Ethernet standard which provides a maximum data rate of 1Gbps. Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches, and the hardware and firmware performance of the host computer.
