- Connection Technology
- Thunderbolt™ 5
- Driverless
- Yes
- Additional Screen Outputs
- 3
- Video Ports
- 3 x Thunderbolt 5 DFP
- Maximum Resolution
- 8K
- Power Delivery
- Up to 140W
- Operating System(s)
- Windows
- SD Card Reader
- Yes
- Number of USB Ports
- 3
- USB Fast Charging
- Yes
- Docking Station Family
- The Innovator
- DockWorks
- Yes (for Windows only)
- Best For
- A Thunderbolt™ 5 laptop running Windows 11 (23H2 or later) with USB-C® PD 3.1 EPR support for up to 140W (28V/5A) charging
- Compatibility
- Windows 11 (23H2 or later)

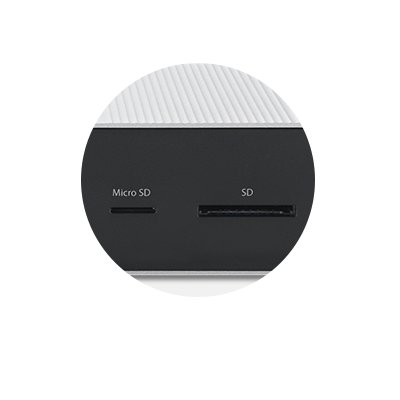

- Card Reader
- SD Card Slot (UHS-II, SD4.0)
- Features
- EQ
- Certified For
- Designed for Microsoft Surface
- TAA Compliant
- Y
- USB-A Ports
- 3 x USB-A 3.2 Gen2 10Gbps
- Audio
- 1 x 3.5mm Combo Microphone & Headphone Port (front)
- Data Transfer Speeds
- Up to 80Gbps of bidirectional bandwidth, with Bandwidth Boost enabling up to 120Gbps for video-intensive usage
- Ethernet Speed (Mbps)
- 10, 100, 1000, 2500 Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches, and the hardware and firmware performance of the host computer.
- Maximum Resolution Supported
- Triple 4K @ 144Hz, Dual 8K @ 60Hz, Single 8K @ 60Hz, or 1080p @ 540Hz
- Mounting Option
- Maximize desktop space and reduce desktop cable clutter via our optional Docking Station Mounting Bracket (K34050WW)
- Warranty
- Limited 3-year warranty
- Plug & Play
- Plug & Play installation without need for drivers or downloads
- Security Slot Compatibility
- Kensington Nano Security Slot, Kensington Security Slot
- Thunderbolt Ports
- 1 x Thunderbolt 5 host port 3 x Thunderbolt 5 downstream ports
- USB-C Power Delivery
- Supports USB-C PD 3.1 (Up to 140W of laptop charging)
- Video Output
- 3 x Thunderbolt™ 5 DFP
- 4K Support
- Yes
- Device Compatibility
- Surface Laptop 13" (1st Ed), Surface Laptop 13" (1st Ed) (Commercial), Surface Laptop 13" (1st Edition) (Arm Consumer), Surface Laptop 13" (2nd Ed), Surface Laptop 13.8" (7th Ed) (Arm Consumer Laptop), Surface Laptop 13.8" (8th Ed), Surface Laptop 13.8" (8th Ed) (Arm Consumer), Surface Laptop 13.8" (8th Ed) (Commercial Laptop), Surface Laptop 15" (7th Ed) (Arm Consumer Laptop), Surface Laptop 15" (8th Ed), Surface Laptop 15" (8th Ed) (Arm Consumer), Surface Laptop 15" (8th Ed) (Commercial Laptop), Surface Laptop 5, Surface Laptop 6 (13.5") (Business Laptop), Surface Laptop 6 (15") (Business Laptop), Surface Laptop Ultra, Surface Pro 10 (Intel Business), Surface Pro 11th Edition (Arm Consumer), Surface Pro 12" (2nd Ed), Surface Pro 13" (12th Ed), Surface Pro 13" (12th Ed) (Arm Consumer), Surface Pro 13" (5G) (Commercial), Surface Pro 8 (Intel), Surface Laptop Go, Surface Laptop Go 2, Surface Laptop Go 3, Surface Laptop Studio, Surface Laptop Studio 2, Surface Pro 7, Surface Pro 7+, Surface Pro 9 (Intel), Surface Pro 12" (1st Ed)
